• Paint, solid
• Bumper, front, chrome, w/dark gray lower
• Bumper, rear, chrome step-inc: pad
• Air dam, Gray
• Wheel flares
• Grille, Gray surround
• Headlamps, dual halogen composite-inc: flash-to-pass feature & automatic lamp control
• Daytime running lamps-inc: automatic exterior lamp control
• Lamps, dual cargo area lamps
• Mirrors, outside rearview, foldaway, manual, Black, adjustable heads
• Glass, Solar-Ray light tinted, all windows
• Wipers, intermittent, front wet-arm w/pulse washers

• Seats, front vinyl 40/20/40 split-bench, 3-passenger, driver & passenger manual reclining w/outboard head restraints, available in front cloth
• Seats, rear 60/40 split-bench, flat folding, 3-passenger-inc: (child seat top tether anchor)
• Floor covering, rubberized vinyl, Black
• Steering wheel, steel sleeve-inc: theft-deterrent locking feature
• Theft-deterrent system, PASSLock II
• Warning tones, headlamp on, key-in-ignition, unfasten driver safety belt, signal on
• Air conditioning, dual-zone, manual, individual climate settings for driver & right front passenger
• Sound system, ETR AM/FM stereo-inc: seek-&-scan, & digital clock
• Sound sytem feature, 4-speakers
• Cupholders, front & rear
• Cigarette lighter, on instrument panel
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Headliner, Shale-colored cloth, w/matching retainer moldings
• Mirror, inside rearview, manual day/night
• Visors, padded, Shale-colored, driver & passenger side w/cloth trim, extenders, pocket on driver side & vanity mirror on passenger side
• Assist handles, front passenger & outboard rear seats
• Lighting, dome lamp, reading, courtesy, illuminated entry feature, backlit instrument panel switches & door handle-activated illuminated entry
• Coat hooks, driver & passenger side

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver & right front passenger
• Daytime running lamps-inc: automatic exterior lamp control

SKID PLATE PACKAGE

• aluminum front underbody shield starting behind front bumper & running to 1st cross-member
• protecting front underbody
• oil pan
• differential case & transfer case
• frame-mounted shields

ENGINE, VORTEC 6000 V8 SFI

• 300 HP [223.8 kW] @ 4400 rpm
• 360 lb.-ft. [486.6 N-m] @ 4000 rpm) (STD)

GLASS, SOLAR-RAY DEEP TINTED

• (all windows except light tinted glass on windshield
• driver & front passenger)

PAINT, SOLID

• (STD)

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• (STD)

SEATS, FRONT VINYL 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER & PASSENGER MANUAL RECLINING W/OUTBOARD HEAD RESTRAINTS

• (STD)

SOUND SYSTEM, ETR AM/FM STEREO W/CD PLAYER

• seek-&-scan
• digital clock
• auto-tone control
• speed-compensated volume
• Radio Data System (RDS) & 4-speakers

TRAILERING EQUIPMENT, HEAVY-DUTY

• trailering hitch platform
• 7-wire harness (harness inc: wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery & ground) w/independent fused trailering circuits mated to a 7-way sealed connector. Also inc: (K47) Air cleaner
• high capacity.

TRIM OVERRIDE, CUSTOM CLOTH

• Uplevel cloth front seats on a base decor level vehicle. Uplevel cloth rear seats w/material matching the front seats will also be provided on Extended Cab models

GVWR, 9200 LBS. (4173 kg)

• (STD)

SNOW PLOW PREP PACKAGE

• 10-amp power for backup & roof emergency light
• 145-amp alternator
• high-flow front bumper
• forward lamp wiring harness
• 1.65" (42 mm) access hole w/grommet in front of dash panel
• mounting location for snow plow controls

TRANSMISSION, 4-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• overdrive
• tow/haul mode & (KNP) Cooling
• external transmission oil cooler

• SKID PLATE PACKAGE -inc: aluminum front underbody shield starting behind front bumper & running to 1st cross-member protecting front underbody oil pan differential case & transfer case frame-mounted shields
• ENGINE VORTEC 6000 V8 SFI -inc: 300 HP [223.8 kW] @ 4400 rpm 360 lb.-ft. [486.6 N-m] @ 4000 rpm) (STD)
• GLASS SOLAR-RAY DEEP TINTED (all windows except light tinted glass on windshield driver & front passenger)
• PAINT SOLID (STD)
• VINYL SEAT TRIM
• REAR AXLE 4.10 RATIO
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY (STD)
• SEATS FRONT VINYL 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER & PASSENGER MANUAL RECLINING W/OUTBOARD HEAD RESTRAINTS (STD)
• TIRES LT245/75R16E ON-/OFF-ROAD BLACKWALL
• AIR CLEANER HIGH-CAPACITY
• SOUND SYSTEM ETR AM/FM STEREO W/CD PLAYER -inc: seek-&-scan digital clock auto-tone control speed-compensated volume Radio Data System (RDS) & 4-speakers
• LAMPS 5 AMBER ROOF MARKER
• TRAILERING EQUIPMENT HEAVY-DUTY -inc: trailering hitch platform 7-wire harness (harness inc: wires for: park lamps backup lamps right turn left turn electric brake lead battery & ground) w/independent fused trailering circuits mated to a 7-way sealed connector. Also inc: (K47) Air cleaner high capacity.
• TRIM OVERRIDE CUSTOM CLOTH Uplevel cloth front seats on a base decor level vehicle. Uplevel cloth rear seats w/material matching the front seats will also be provided on Extended Cab models
• GVWR 9200 LBS. (4173 kg) (STD)
• SNOW PLOW PREP PACKAGE -inc: 10-amp power for backup & roof emergency light 145-amp alternator high-flow front bumper forward lamp wiring harness 1.65 (42 mm) access hole w/grommet in front of dash panel mounting location for snow plow controls
• TRANSMISSION 4-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED -inc: overdrive tow/haul mode & (KNP) Cooling external transmission oil cooler
• PREFERRED EQUIPMENT GROUP
• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Daytime Running Lights
• Intermittent Wipers
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Immobilizer
• Climate Control
• Multi-Zone A/C
• A/C
• AM/FM Stereo
• Power Outlet
• Front Reading Lamps
• ABS
• 4-Wheel Disc Brakes
• Driver Air Bag
• Passenger Air Bag
• Daytime Running Lights

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 15.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4670
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3318
• Curb Weight - Rear (lbs): 2445
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 16,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 7500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 1000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10,600
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2500
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: QIW
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIW
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: QIW
• Spare Tire Order Code: QIZ
• Front Tire Size: LT245/75R16
• Rear Tire Size: LT245/75R16
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2480
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 2480
• Spare Tire Capacity (lbs): 2335
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 49.6
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 237.2
• Width, Max w/o mirrors (in): 79.7
• Height, Overall (in): 76.2
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.1
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 41.9
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 56.9
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.9
• Second Leg Room (in): 38.8
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary

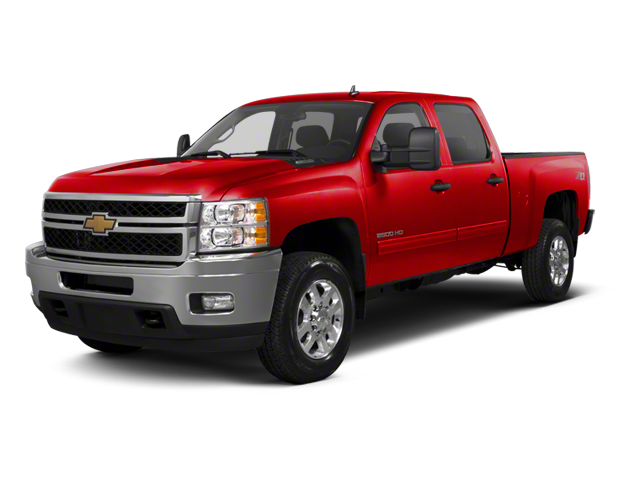

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab 6.5' Fleetside
• Body Code: E63
